Florida Approved Hurricane Impact Exterior Large Lift and Sliding Patio Doors Double Glazed Sliding Doors

Product Description

Product Overview

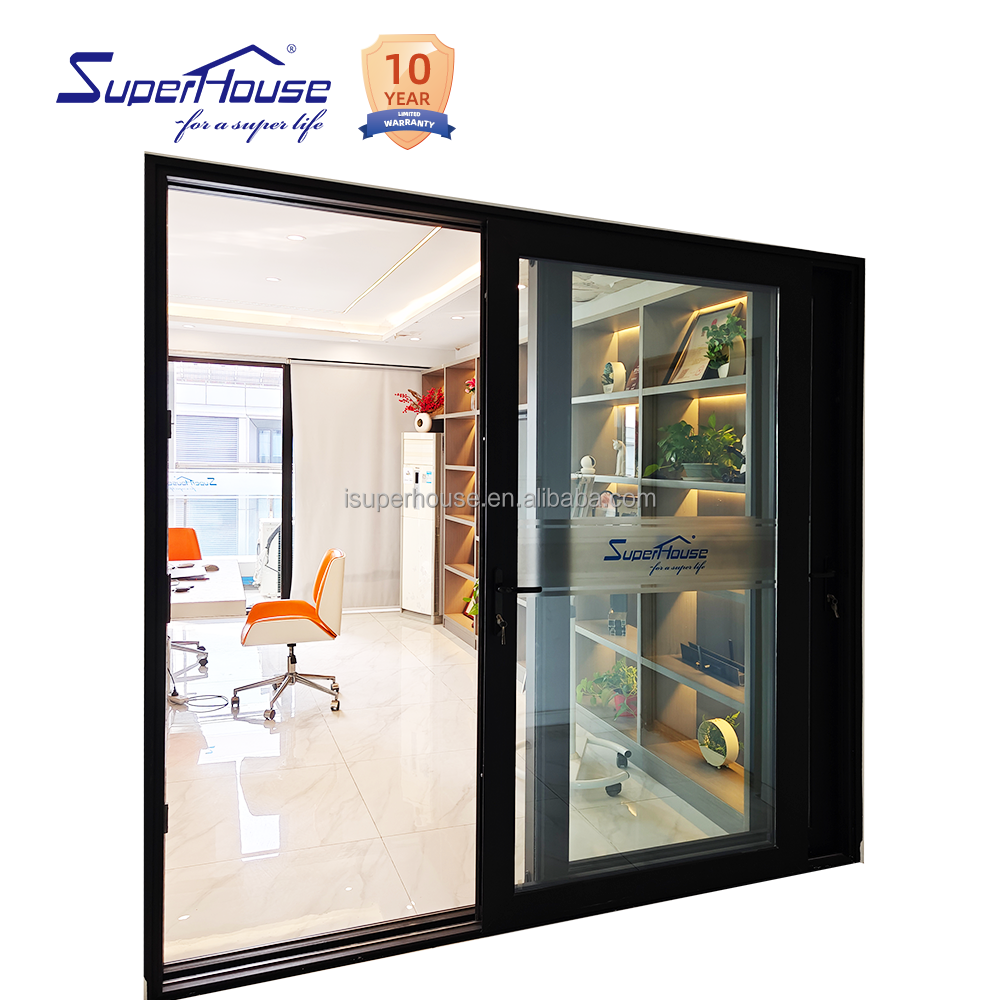

Sliding Door System Overview

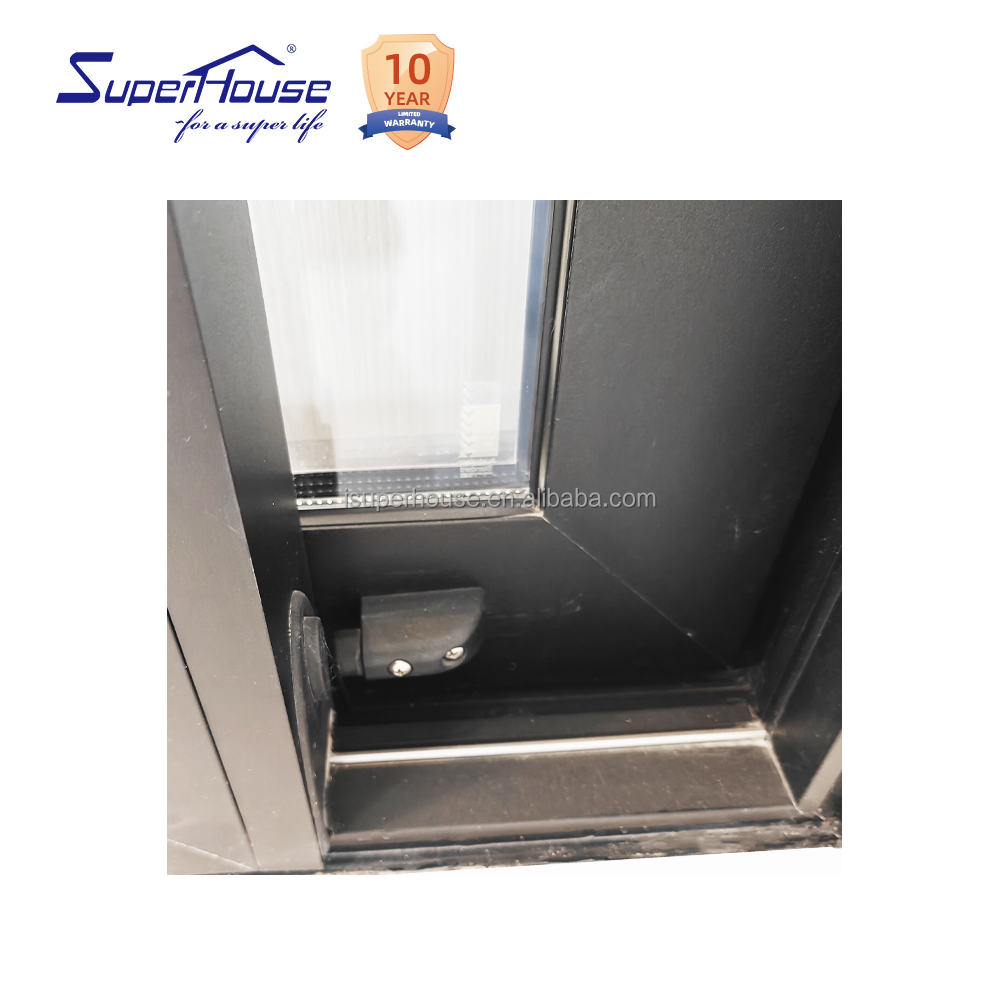

Product Specification Detail

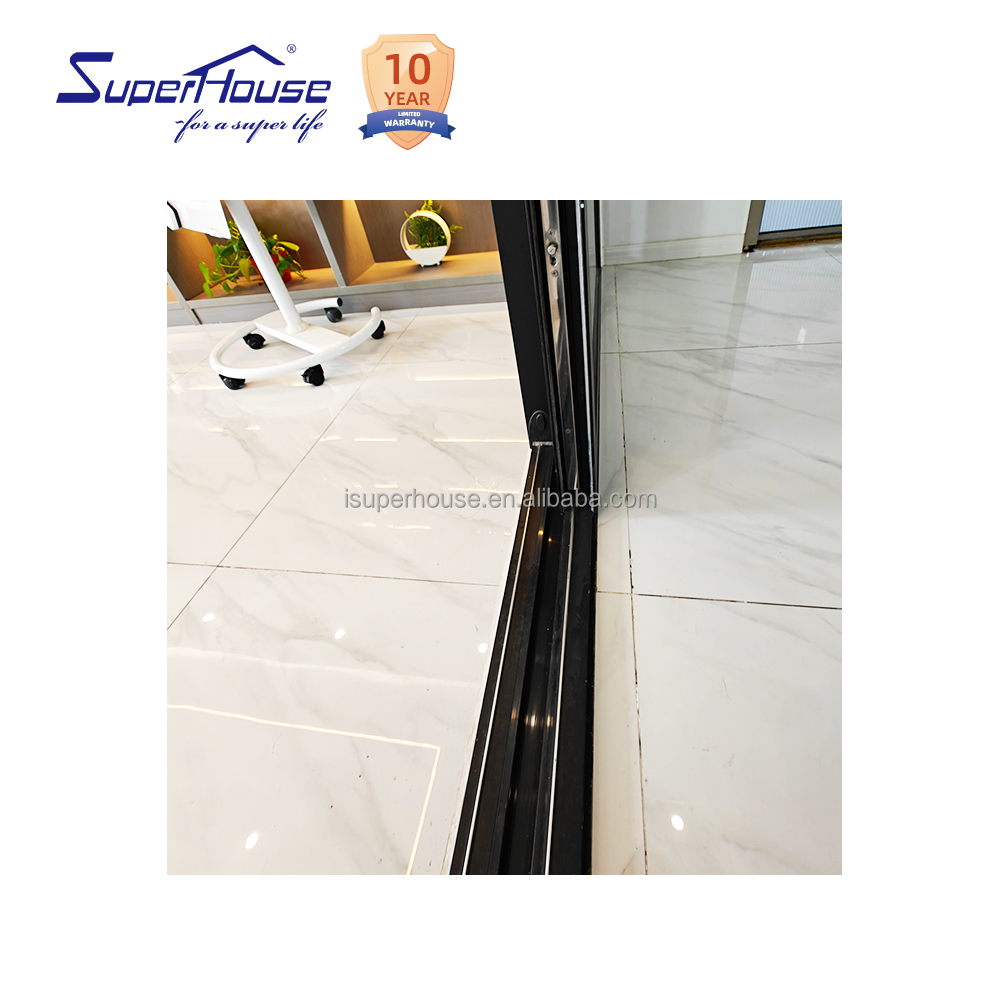

Profile Section Architecture
Section of the System
Sliding door-Slimline-SP146
System Structure Diagram
Hardware Integration
Frame Components
Profile Corner Joint
Track Design
Sealing System
Technical Specifications
Profiles 1. 6063-T5 high quality aluminium profile, wall thickness 2.0-3.0mm for doors.
2. Patented designs for commercial and residential buildings
3. PVC/Aluminium profiles
Glass 1. Double toughened glass: 5mm+12A+5mm; 6mm+12A+6mm
2. Tinted; Low-E coating; argon gas infilled or with built-in blinds
3. Single toughened glazing: 5/6/8/10/12mm
4. Laminated glazing: 4mm+0.76pvb+4mm, 5mm+1.14pvb+5mm
5. Bullet-proof glass; blast resistant glass
Hardware 1. German brand: Roto, Siegenia, Geze
2. Australian brand: Doric, Lockwood
3. Chinese brand: Kinlong, HOPO
Mesh 1. Stainless steel security mesh
2. Aluminium security mesh
3. Fiberglass flyscreen
4. Retractable flyscreen
Finish 1. Powder coating
2. Anodized
3. Wood grain
4. Fluorine carbon coating
Standard / Certificate NFRC ; NOA ; AS2047 ; AS2208 ; AWA ; AS4666 ; AAMA
Guarantee Period 10 YEARS
Production Experience More than 18 years
Shortest Delivery Time Select stock color to achieve 25 days delivery
Manufacturing & Production
Factory Facility
Production Workshop
Automated Manufacturing
Assembly Line
After two decades of development, operations have expanded into a specialized production base focusing on hurricane resistant aluminum windows, doors, energy-efficient thermal doors and windows, UPVC doors and windows, handrails, louvers, and more. Additionally, operations are dedicated to 100% exporting, primarily serving the North American and Australian markets.

Backed by 200 employees and a 25,000-square-meter factory, over the past five years an investment of 100 million RMB has established leadership in production, being the first to obtain the Hurricane Doors and Windows Certification. In 2023, an investment of 6 million RMB in automated production line equipment was implemented to ensure precision improvement, productivity enhancement, and guaranteed delivery deadlines.

Over the past two decades, over 10,000+ satisfied customers have been served with 10,000+ containers successfully exported, alongside thousands of successfully completed projects for high-end hotels and villas.
Certifications & Standards
Compliance Certificates
Inquiry & Contact
Project quotations and consultations are fully supported for custom configurations and architectural requests.
Inquiry Information
Exhibition & Global Reach
Trade Show Display
Exhibition Presence
Project & Customer Showcase

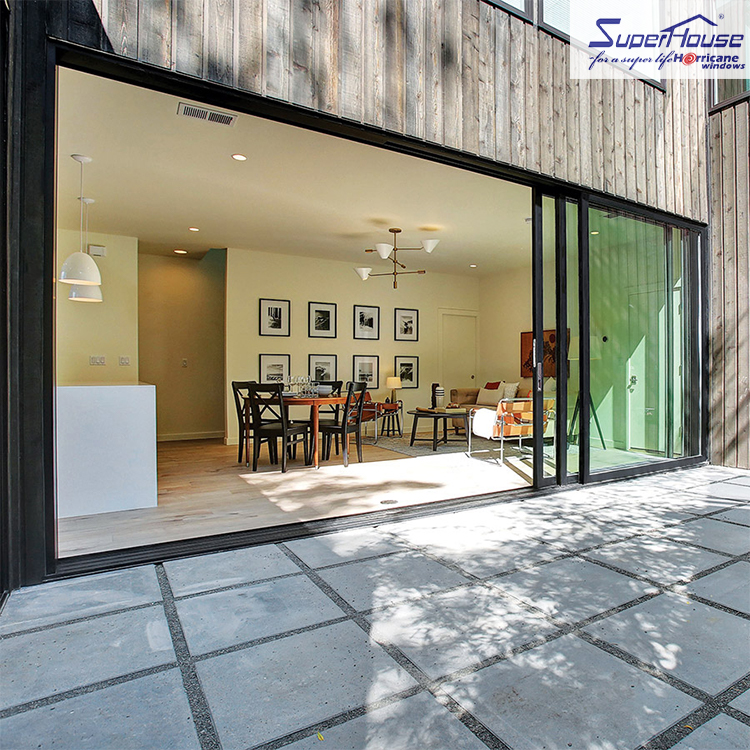

Client Installation Showcase
Finished Door Application
Frequently Asked Questions (FAQ)
What aluminium profile thickness is used for the sliding doors?
High-quality 6063-T5 aluminium profiles with a wall thickness ranging from 2.0mm to 3.0mm are used for doors, ensuring structural integrity and compliance with heavy-duty commercial and residential demands.
What glazing and glass specifications can be configured?
A variety of options are available including double toughened glass (5mm+12A+5mm, 6mm+12A+6mm), single toughened glass (5mm to 12mm), laminated safety glass, tinted glass, Low-E coating, argon gas filling, built-in blinds, as well as bullet-proof and blast-resistant configurations.
Which international standards and certifications are met?
The products are certified according to major international standards including NFRC, NOA (Miami-Dade hurricane certification), AS2047, AS2208, AWA, AS4666, and AAMA.
What hardware brands are supplied with the systems?
Premium multi-regional hardware options are available, including German hardware (Roto, Siegenia, Geze), Australian systems (Doric, Lockwood), and recognized high-grade hardware brands (Kinlong, HOPO).
What is the warranty period and typical delivery lead time?
All sliding door systems come with a 10-year guarantee period. For standard stock color selections, accelerated production enables delivery lead times as fast as 25 days.
Are security screens and flyscreens compatible with this model?
Yes, the SP146 series seamlessly integrates with stainless steel security mesh, aluminium security screens, fiberglass flyscreens, or retractable screening systems.
