Explore our NFRC-certified, hurricane-rated, and intelligent smart-access hinged exterior and interior entrance solutions engineered for global commercial and luxury residential projects.
Established in 2003, Steelwar Entry Systems Co., Ltd. operates a premier 40,000 m² manufacturing complex specialized in structural aluminum hinged entrance systems and commercial doors.
With 21 years of dedicated manufacturing evolution and 9 years of direct global exporting operational experience, Steelwar generates over $35 million in annual export turnover. We serve premium building material distributors, door stockists, and commercial facade contractors across North America, Western/Eastern Europe, and the Middle East.
Supported by 1,100 supply chain partners, our quality verification protocols are governed by 50 dedicated QC specialists performing dynamic impact testing, extrusion wall thickness verification, and corrosion audit cycles. Our 75 in-house R&D engineers delivered 230 new architectural door designs last year alone.
A deep engineering analysis of architectural requirements, structural load capabilities, and regional thermal compliance standards dominating contemporary facade engineering.
In modern commercial architecture, hinged entry systems represent a primary physical envelope boundary. Unlike standard sliding configurations, heavy-duty aluminum hinged doors feature continuous perimeter compression sealing systems. Under severe wind pressures (up to 9000 Pa dynamic load under ASTM E1300 and Miami-Dade TAS 201/202/203 testing), high-tensile 6063-T6 aluminum extrusions prevent structural deflection, ensuring zero frame warp or air filtration failure in high-rise coastal developments.
Global energy regulations—such as NFRC specs in North America, CodeMark in Australasia, and CE standards in Europe—mandate exceptionally low thermal transmittance (U-factors below 1.6 W/m²K). Utilizing multi-chambered structural polyamide thermal break strips (PA66GF25 with 25% glass fiber reinforcement), our aluminum hinged door profiles decouple the exterior and interior thermal zones, eliminating thermal bridging and reducing HVAC commercial building energy loads dramatically.
Commercial entrance swing doors must endure hundreds of opening cycles daily. Hinged door designs incorporate heavy-duty stainless steel continuous piano hinges or 3D adjustable 4-ball bearing butt hinges rated for over 500,000 cycles. Integrated multi-point locking rods, panic egress hardware, and electromagnetic lock integrations allow seamless pairing with enterprise security management networks.
From prime aluminum billet extrusion slicing to precision CNC milling, structural assembly, automated gluing, and dynamic impact laboratory auditing.
Raw Materials
Cutting
Milling
Assembling Step 1
Assembling Step 2
Gluing
Quality Testing
Packaging
Warehouse
Cutting Machine
Milling Machine
Design with CAD
Design with Computer
Why Tier-1 architectural developers choose Chinese integrated manufacturing hubs for large-scale commercial hinged door procurement.
China's extrusion and door manufacturing industrial ecosystem delivers unmatched cost efficiency, scale, and lead-time predictability. Steelwar leverages localized access to raw 6063/6061 aluminum ingots, fluorocarbon (PVDF) surface treatment facilities, and world-class glass processors (yielding Low-E toughened laminated glass with Argon gas filling).
This vertical consolidation reduces production turnaround by up to 35% compared to Western manufacturers while maintaining total tolerance precision of ±0.5mm across frame corners via computerized multi-head crimping machines.
1. Coastal & Hurricane-Prone Regions (Florida NOA Standard): Heavy-wall profile extrusions paired with SentryGlas® interlayer laminated impact glass withstand cyclonic wind pressures and flying debris debris impacts.
2. High-Traffic Commercial Hubs & Hospitality: Heavy-duty double glass French hinged doors equipped with floor-spring closers, kick plates, and German-engineered multi-point panic bar exit hardware.
3. Prefabricated & Modular Housing Systems: Factory-pre-hung hinged aluminum doors pre-fitted with thermal break frames, allowing quick plug-and-play installation on modern site assemblies.
| Performance Standard | Testing Specification / Standard | Steelwar Technical Benchmark Value | Target Application Zone |
|---|---|---|---|
| Hurricane Impact Resistance | Miami-Dade NOA / TAS 201, 202, 203 | Large Missile Impact (+/- 70 PSF Design Pressure) | Coastal Zones, Florida, Caribbean, Prefab Villas |
| Thermal Transmittance (U-Factor) | NFRC 100/200 & EN ISO 10077-2 | 1.2 - 1.6 W/m²K (Thermal Break + Low-E Triple Pane) | North America, Northern Europe, Energy Star Projects |
| Acoustic Insulation (STC) | ASTM E90 / ISO 10140 | STC 38 - 45 dB Sound Dampening | Hospitals, Airport Hotels, Executive Offices |
| Airtightness & Water Tightness | AS2047 / EN 12207 Class 4 | Water Resistance: 600 Pa / Air Infiltration: <0.1 L/s·m² | High-Rise Balconies, Machine Rooms, Main Entrances |
| Hardware Operational Life | EN 1191 Cycle Testing | > 500,000 Continuous Mechanical Swings | Commercial Malls, Schools, Emergency Exit Escape Doors |
How IoT smart biometrics, zero-carbon aluminum smelting, and ultra-narrow profile aesthetics are reshaping commercial exterior architecture.
Keyless access is evolving rapidly. Next-generation hinged aluminum exterior doors integrate concealed biometric 3D facial recognition modules, semiconductor fingerprint scanners, encrypted smartphone APP remote controls, and motorized automatic locking pins embedded directly into the structural aluminum frame profiles without compromising weather sealing.
Architectural design demands maximal natural light and unobtrusive views. Advanced engineering allows structural aluminum door sashes to reduce visible frame width down to less than 45mm, while retaining structural moment capacity for heavy double laminated glass units weighing over 150 kg per leaf.
Environmental standards require full product lifecycle transparency. Our aluminum profiles utilize recycled post-consumer aluminum scrap alongside hydro-powered low-carbon smelting processes. Combined with non-VOC powder coatings or chemical anodizing, our products help projects gain high LEED and BREEAM certifications.
Our team of 75 senior engineering specialists can tailor frame depth profile systems, glass specs (tinted, reflective, electrochromic smart glass), custom RAL powder coating finishes, and ballistic steel core reinforcements to match your exact commercial tenders.

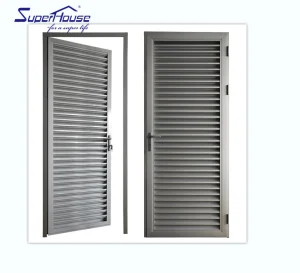

Explore emergency panic escape hardware units, structural louvers, reflective privacy entrances, and Florida-code commercial apartment doors.
Clear expert answers regarding certification compliance, thermal values, hardware longevity, and global export shipping logistics.
